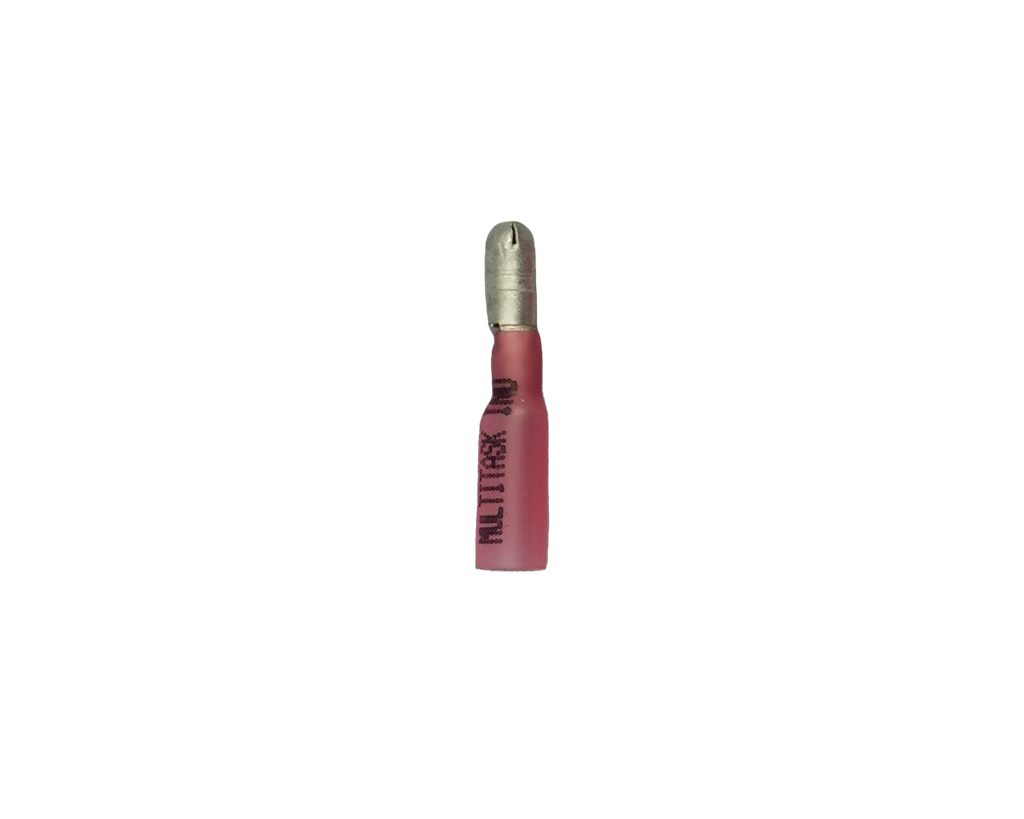

EASY CRIMP BULLET

https://www.multitaskindustries.be/web/image/product.template/1499/image_1920?unique=6a9f27c
  • Waterproof heat shrink connector with ball end
  • Suitable for high vibration loads due to the exceptional elasticity of both the insulation material and the high-temperature adhesive!
  • Does not become brittle as quickly as similar products.
  • High insulation resistance.
  • High tensile strength.
  • Connection inspection is easy thanks to the transparent casing.

Not Available For Sale

0.00 € \ Piece

  • Geslacht
  • Color
Internal Reference: C101060

This combination does not exist.

Login to see price
Contact Us
Textual description

Waterproof Heat Shrink Connector – Bullet Model

Professional waterproof heat shrink connector with a bullet joint for a quick and reliable electrical connection.

Thanks to the heat shrink tubing, a moisture- and corrosion-resistant connection is created, ideal for use in vehicles, machines, and installations.

Features:

  • Waterproof and corrosion-resistant – maximum protection against moisture
  • Strong, service-friendly connection – easy to connect and disconnect
  • Easy to install – shrink and heat for a durable seal

Available sizes:

  • Red: Ø 0.25 mm – 1.5 mm
  • Blue: Ø 1.5 mm – 2.5 mm

With these bullet heat shrink connectors, you create a professional and safe connection that withstands vibrations and harsh conditions.
Use

Easy Crimp M/W/Bullet is designed as a slide connector, suitable for both repairs and new installations. Ideal for truck and bus manufacturers, contractors, farmers, excavation workers, electrical maintenance services, industrial maintenance services, shipbuilding and repair, towbar installations, alarm systems, garages, body shops, motorcycles, and more. Provides a very good conductive connection. Fast and easy to use. Extra high resistance to vibration and wear!!!
Instructions for use

Choose the correct diameter.

Strip approximately 6 mm of the cable.

Slide the Easy Crimp over the cable and degrease the cable sheath if necessary using MEC-ELEC CLEAN.

Crimp the Easy Crimp mechanically.

Heat the Easy Crimp using Flamewarp, a hot air gun, or Multi-Heat.
Dielectric breakdown voltage 2,5 kV
Insulation resistance 1000 MΩ
Voltage range Max. 600V
Temperature range -55°C to 125°C
Shrink temperature

+220°C
Shrink ratio ca. 2:1
Chemical resistance Motor oil, 15% salt water, brake fluid, antifreeze, diesel
Solvent resistance Trichloroethylene, gasoline, isopropanol
Andere info

Environment & Safety

Halogen-free
