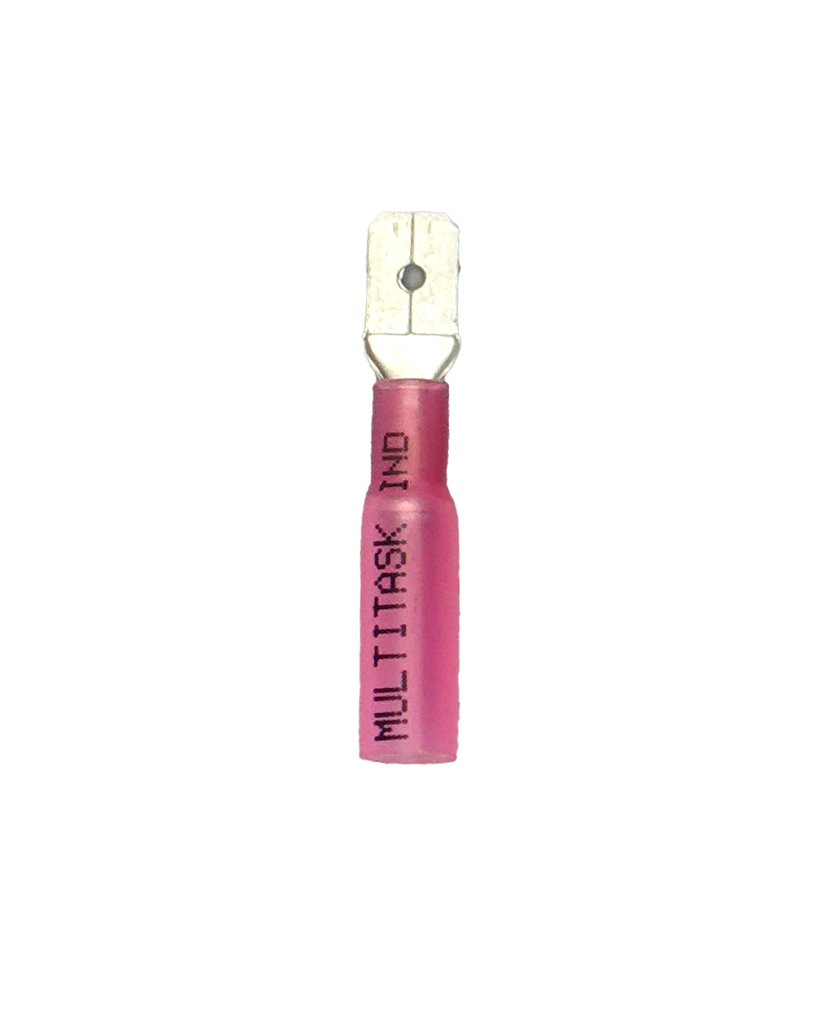

EASY CRIMP SLIDE PLUG

https://www.multitaskindustries.be/web/image/product.template/1500/image_1920?unique=5c07a81
  •  Waterproof heat shrink connector with slide terminal end
  • Suitable for high vibration loads due to the exceptional elasticity of both the insulation material and the high-temperature adhesive!
  • Does not become brittle as quickly as similar products.
  • High insulation resistance.
  • High tensile strength.
  • Connection inspection is easy thanks to the transparent casing.

Not Available For Sale

0.00 € \ Piece

  • Geslacht
  • Color
Internal Reference: C100502

This combination does not exist.

Login to see price
Contact Us
Textual description

Waterproof Heat Shrink Connector – Male/Female Slide Connector

Professional waterproof heat shrink connectors with male/female slide connectors for a reliable and moisture-resistant electrical connection.

Perfect for applications where safety and durability are essential, such as vehicles, machines, and installations.

Features:

  • Waterproof and corrosion-resistant – optimal protection against moisture and dirt
  • Strong connection – vibration and stress-resistant
  • Easy installation – shrink and heat for a secure seal
  • Male & female design – connector/slide width 6.35 mm

Available sizes:

  • Red: Ø 0.25 mm – 1.5 mm
  • Blue: Ø 1.5 mm – 2.5 mm
  • Yellow: Ø 2.5 mm – 3.5 mm

With these waterproof slide connectors, you create a professional, durable, and service-friendly connection in no time.
Use

Easy Crimp M/W/Bullet is designed as a slide connector, suitable for both repairs and new installations. Ideal for truck and bus manufacturers, contractors, farmers, excavation workers, electrical maintenance services, industrial maintenance services, shipbuilding and repair, towbar installations, alarm systems, garages, body shops, motorcycles, and more. Provides a very good conductive connection. Fast and easy to use. Extra high resistance to vibration and wear!!!
Instructions for use

Choose the correct diameter.

Strip approximately 6 mm of the cable.

Slide the Easy Crimp over the cable and degrease the cable sheath if necessary using MEC-ELEC CLEAN.

Crimp the Easy Crimp mechanically.

Heat the Easy Crimp using Flamewarp, a hot air gun, or Multi-Heat.
Dielectric breakdown voltage 2,5 kV
Insulation resistance 1000 MΩ
Voltage range Max. 600V
Temperature range -55°C to 125°C
Shrink temperature

+220°C
Shrink ratio ca. 2:1
Chemical resistance Motor oil, 15% salt water, brake fluid, antifreeze, diesel
Solvent resistance Trichloroethylene, gasoline, isopropanol
Andere info

Environment & Safety

Halogen-free
