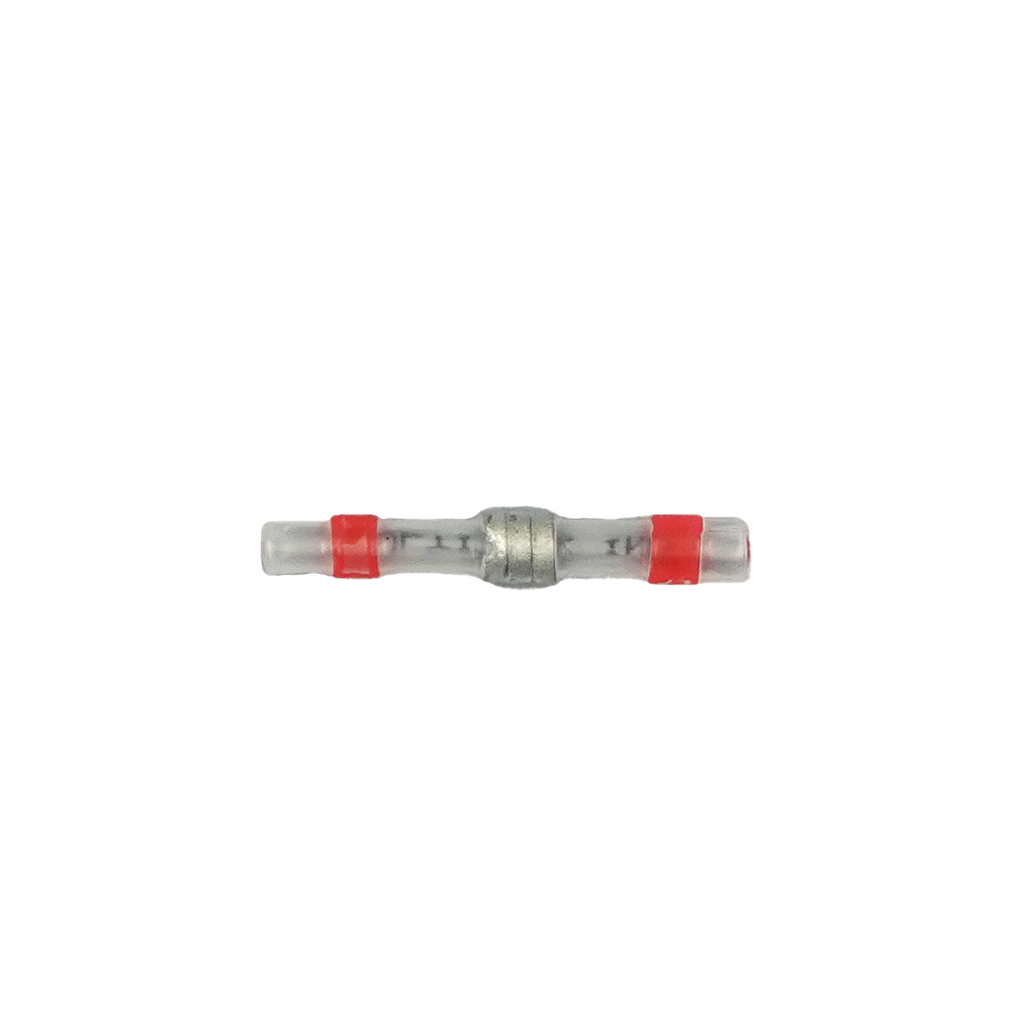

EASYSOLDER CONNECT
- Waterproof Solder Connector
- Connects flexible or rigid wires in a single operation.
- Solders, insulates, connects, and seals — completely water- and dustproof.
- The 3 lead-free solder rings ensure a saturated solder connection!
- Extreme temperature resistance from -60°C to +250°C provides maximum versatility!
- Transparent insulation allows for visual inspection.
- No voltage loss.
| Textual description |
Waterproof Lead-Free Solder Connector Professional lead-free solder connector with integrated solder rings for an environmentally friendly, strong, and waterproof connection. When heated, the solder melts and the adhesive flows, creating a durable electrical connection and a complete seal. Features:
Available sizes:
With the waterproof lead-free solder connector, you create a professional, safe, and environmentally friendly connection in one step – ideal for installers and maintenance technicians who value quality and sustainability.
|
| Use |
Easysolder is designed for connecting wires — both for repairs and newly installed components. Ideal for applications where low resistance is required. Can also be used for outdoor wiring. Highly suitable for maritime use, as Easysolder offers excellent protection against weather conditions. Perfect for truck and bus manufacturers, contractors, farmers, excavation companies, electrical and industrial maintenance services, shipbuilding and repair, towbar installations, alarm systems, garages and body shops, motorcycles, etc. 3 solder rings! (2 rings on transparent models) Quick installation. Connects, solders, insulates, and seals — all in one operation. Just apply heat with a hot air gun. |
| Instructions for use |
Choose the correct diameter. Strip approximately 6 mm of the cable. Slide the EASYSOLDER over the cable and, if necessary, degrease the cable sheath with MEC-ELEC CLEAN. Heat the solder until it activates. Then work toward the outer ends. |
| Dielectric breakdown voltage | 2,0 kV |
| Voltage range | Max. 600V |
| Breakdown voltage | 1 minute 3400V max: 8000V |
| Insulation resistance | 1000 MΩ |
| Voltage drop | 2 mV |
| IP value | 6 - 7 |
| Temperature range | -60°C to +250°C |
| Shrink temperature |
+300°C |
| Outer layer | Radiation cross-linked transparent polyolefin |
| Solder ring | 3 rings. Sn 45%, Bi 55% + flux |
| Sealing | Thermally stabilized thermoplastic |
| Andere info |
Environment & Safety ROHS approved |
