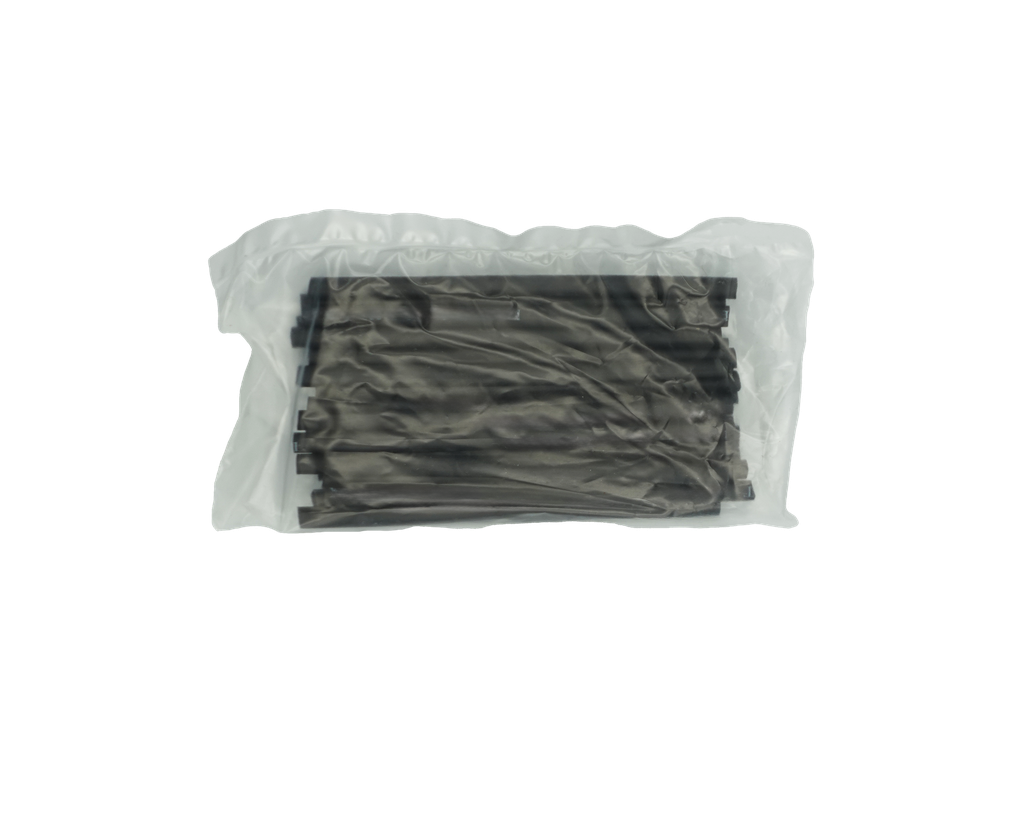

GENERAL TUBING 100mm
- Thermal flexible heat shrink tubing
- Inner wall with high-quality, strongly adhesive and sealing meltable glue
- The 3:1 and 4:1 shrink ratios provide excellent mechanical protection, even on irregular shapes with varying diameters.
- Temperature range: -55°C to +160°C
- Resistant to hydraulic and synthetic oils
- Highly resistant to chemicals, acids, and corrosion
-
Kleur
-
Krimpratio
This combination does not exist.
| Textual description |
Versatile flexible heat shrink tubing with an inner wall of meltable adhesive. Provides extra sealing and insulation. Maintains maximum flexibility. Each piece is 100 mm. Transparent: Ideal for coding. |
| Use |
Ideal for sealing, insulation, strain relief, and protection of connections between cables and connectors without disconnecting the connector… Can be used for ALL electrical applications. Perfect for trucks and bus manufacturers, contractors, farmers, excavators, electrical maintenance services, industrial maintenance, shipbuilding and repairs, tow bar installations, alarm systems, garages, bodywork, bicycles, motorcycles, lawnmowers… Protection of coaxial cables Preventive protection against electrolytic corrosion Insulation of neon tube conduits Protects metal against corrosion and wear When applied preventively, it protects all cables Can be used in damp environments Quick installation Heat with a Flamewarp or hot air blower |
| Instructions for use |
|
| Elongation at break | 490% |
| Dielectric strength | 12 MV/m |
| Chemical resistance ISO 37, 24-hour immersion at 23°C |
Hydraulic fluid: Very good Diesel oil: Good Kerosene: Good Lubricating oil: Good |
| Temperature range | -55°C to +90°C |
| Shrink temperature |
Transparent tubing: up to +150°C All other colors: up to +300°C |
| Tensile strength | 11,5 MPa |
| Volume resistivity | 1 × 10¹⁵ Ω·m (VDE0303 Pt3) |
| Flammability |
Inner wall: none Outer wall: flame-retardant |
| Flexibility | YES |
